Payment & Shipping Terms:
|Performance:||Large Torque With Low Speed||Displacement:||160cc,225cc,255cc,280cc,325cc,|
|Max. Torque:||1620 N.m||Brake:||With Brake & Without Brake|
|Series:||MCR92||Brand Name:||Rexroth Hydraulic Motor|

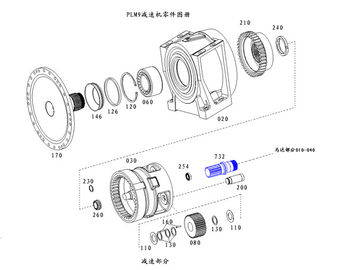

Sell Rexroth Hydraulic Radial Piston Motor MCR92 ,PLM-9 ,PLM-7 replancement parts
Poclain MCR03, MCR05,MCR10,MCR15,MCR20,MCR40 Hydraulic Motor Spare Parts :
1) These are the spare parts for Rexroth MCR03 Hydraulic Motor Spare Parts , and alll of them could be best replacement of the original Rexroth MCR03 Hydraulic Motor.

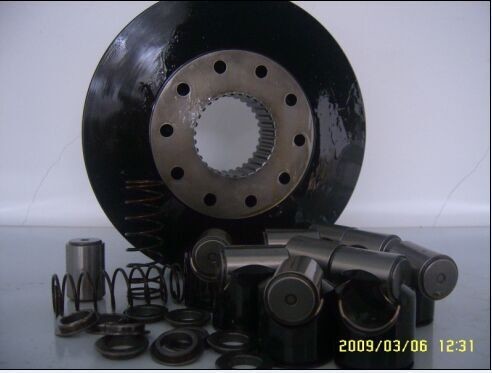

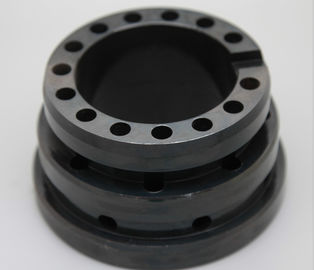

2) Include drive shaft, front cover, stator, rotor, plunger piston, roller, distributor, rear cover, dynamic friction, static friction, checking cylinder, break plunger, cover plate break shaft, brake shaft, etc.
MCR series hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling rig, small road header, mixer, cutting machine, port crane, boring machine, scraper, heavy-duty truck and coal mine drilling machine.
|Item No||Desc||Quan||Remark||Item No||Desc||Quan|
|1||Drive Shaft||1||10||Clip Ring||2|
|7||Piston Ring||10||17||Brake Shaft||1|
|9||Baffle Ring||2||19||Cover Plate||1|
Radial Piston Motor MS02 MS05 MS08 MS11 MS18 MS25 MS35 MS50 MS83 MS125 MCR05 MCR03We also doing
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes. It is widely applied in mining, crane, geologic drilling, construction machinery, etc.
Motor integral structure according to the modular design, with chip stacking, including mechanical output device, hydraulic device, mechanical brake device of three parts, which can be conveniently matched with various hose optimization.
High pressure, Excellent low-speed stability:
Using the automatic compensation oil distributor of plane type, with low sensitivity of pressure and temperature, automatic compensating the wear of the friction pair, so as to ensure high volumetric efficiency of motor for any time, the highest working pressure to 35MPS, symmetrical piston, high start efficiency, excellent low-speed performance, the lowest stable speed id less than or equal to 5r.p.m.
Bear axial and radial force:
Using an independent set of mechanical output device, reliable designing of output shaft and bearing, the power driving device with balance radial force and pure torque outputs, so the motor can bear large axial force and radial force, can be directly with gear output or installed on the vehicle driving wheel.
The motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
|Product Name||Hydraulic Motor|
|Valving Type||1-Displacement valving, 2-Displacement valving(clockwise/counteclockwise)|
|Mounting Options||With Mounting, Without Mounting|
|Time of warranty||1 Year after delivery|
|Delivery Time||3-5 days for stock products, 15-35 days for a production.|
|Application||Geological Drilling Equipment, Vessel Deck Machinery, Harvester, Excavator, etc.|
|Description||Radial Piston Motor MS02 MS05 MS08 MS11 MS18 MS25 MS35 MS50 MS83 MS125 MCR05 MCR03|
Radial Piston Motor MS02 MS05 MS08 MS11 MS18 MS25 MS35 MS50 MS83 MS125 MCR05 MCR03
All of hydraulic products can be widely applied in hydraulic drive systems of mine construction machinery, cranes and transporting equipment, heavy-duty metallurgic machinery, petroleum and vessel deck machinery, machine tools, plastic machinery, geological drilling equipment, agricultural and forest machinery, working platform, lawn mowers, special vehicles, fishery winches, carpenter machinery and sawing machines, rubber machinery and other machinery in the hydraulic system. These products are especially applicable to screw drives of plastics injection machines, the drives of lifting winches and winding drums, driving tracks of rotating mechanisms and the drive of wheel traveling mechanisms.
