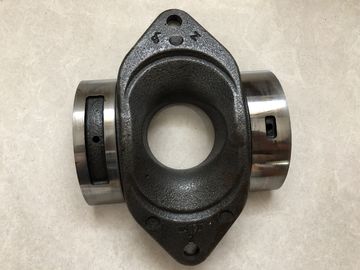

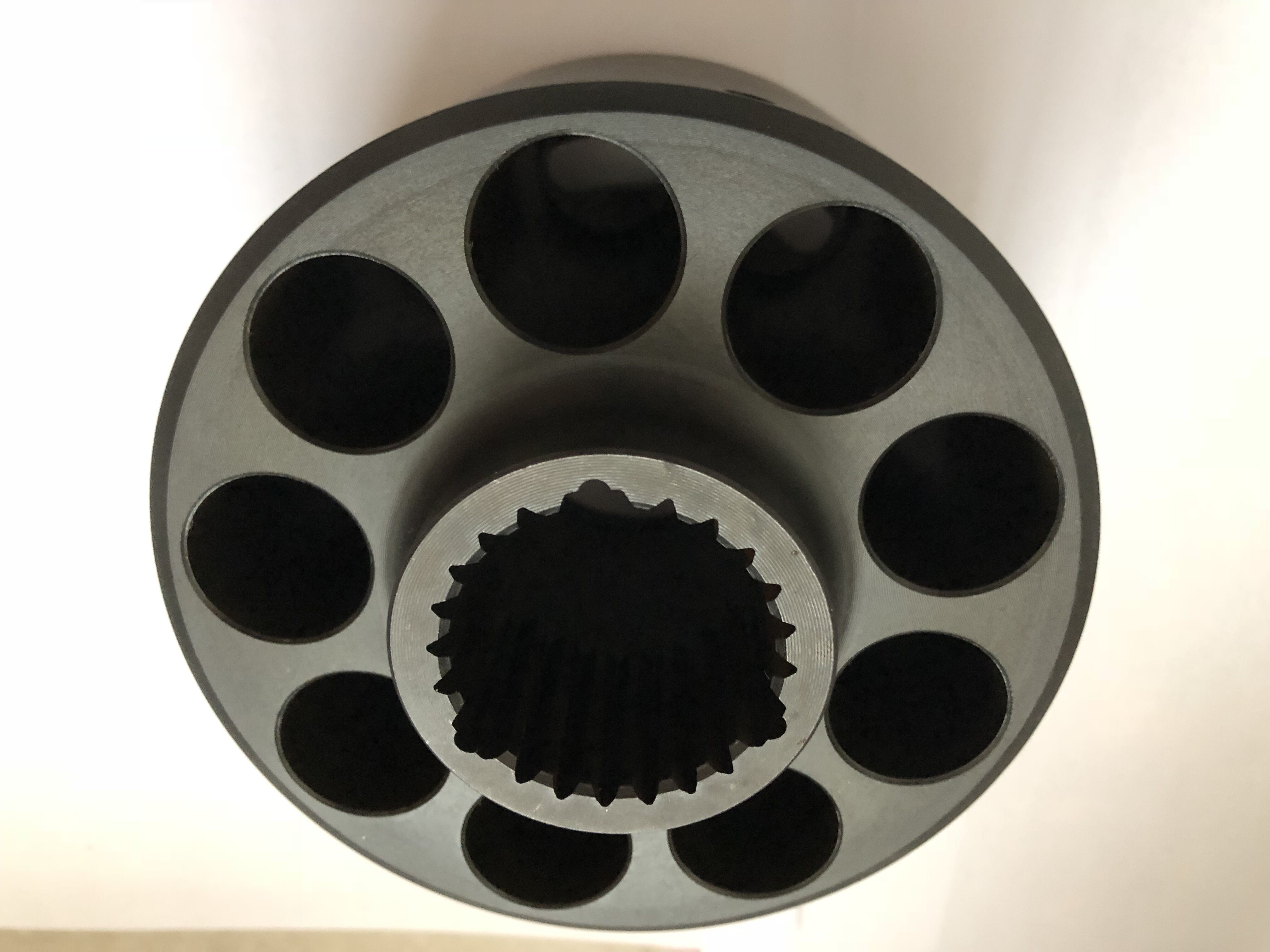

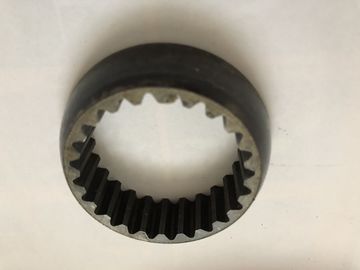

Sell Parker Denison P1 Series PD100 or Parker Denison PD140 for Atlas Rock Drills Hydraulic pump parts

Variable Displacement Piston Pumps
Series P1
Code Paint
00 No Paint
PB Black Paint
Code Controls
C0 Pressure Limiter, 80-280 bar Adjustment Range
C1 Pressure Limiter, 20-80 bar Adjustment Range
L0 Load sensing, 10-30 bar ∆P and Pressure Limiter 80-280 bar
L1 Load sensing, 10-30 bar ∆P and Pressure Limiter 20-80 bar
RN Pilot Operated Control with ISO-4401 (NG 6) Interface and Shipping Cover
RH Pilot Operated Control with Vent Port
RM Pilot Operated Pressure Limiter Control with Mechanical Adjustment and Vent Port
RE Pilot Operated Pressure Limiter Control with Proportional Electronic Pressure Adjustment
EY Integrated Digital Electronic Displacement and Pressure Control (075 only)
Ordering Information
Additional Port Mechanical Case-to-Inlet Thru-Drive Special
Controls Control Orientation Displacement Check Mounting Pad Paint Features
Options Adjustment Valve & Coupling
Code Port Orientation
E End Ports
S Side Ports
T Side Ports with Thru Drive
Code Special Features
00 No Special Features
M2 Special Modifidieselion
Code Case-to-Inlet Check Valve
0 No
1 Yes
Code Mechanical Displacement Adjustment
0 None
1 Adjustable Maximum Displacement
(not available on thru-drive)
2 Adjustable Minimum Displacement
(not available on thru-drive)
3 Adjustable Maximum & Minimum Displacement
(not available on thru-drive)
*Available on 060 thru 140 models.
** Available on 100 thru 140 models.
*** Available on 140 models.
Code Thru-Drive Mounting Pad/Coupling
0 None (valid for end or side ported only)
A* SAE 82-2 (A pilot) & 16 (A 9 t spline) coupling
H* SAE 82-2 (A pilot) & 19 (spline) coupling
B* SAE 101-2 (B pilot) & 22 (B 13 t spline) coupling
Q* SAE 101-2 (B pilot) & 25 (B-B 15 t spline) coupling
C* SAE 127-4 (C pilot) & 32 (C 14 t spline) coupling
N** SAE 127-4 (C pilot) & 38 (C-C 17 t spline) coupling
D*** SAE 152-4 (D pilot) & 44 (D/E 13 t spline) coupling
R* ISO 80A2 pilot & K20N splined coupling
S* ISO 100A2 pilot & K20N splined coupling
T* ISO 100A2 pilot & K25N splined coupling
V* ISO 125B4 pilot & K32N splined coupling
W** ISO 125B4 pilot & K40N splined coupling
X*** ISO 180B4 pilot & K50N splined coupling
Code Additional Control Options
0 None
L0 0 E 0 0 0 00Parker Hannifin Corporation
Hydraulic Pump Division
Marysville, Ohio USA
dieselalog HY28-2664-01/NA,EU
4
Variable Displacement Piston Pumps
Series P1
Model P060 P1075 P1100 P1140
Maximum Displacement, cm3/rev
cu.in./rev
60
3.66
75
4.58
100
6.01
140
8.54
Outlet Pressure – Continuous, bar
psi
280
4000
Intermittent*, bar
psi
320
4500
Peak, bar
psi
350
5000
Maximum Speed – Boosted Inlet, rpm 2800 2700 2500 2400
(1.0 bar abs inlet), rpm 2400 2300 2100 2000
(0.8 bar abs inlet), rpm 2000 1900 1700 1600
Minimum Speed, rpm 600
Inlet Pressure – Maximum, bar
psi
10
145
Rated, bar
psi
1.0 absolute (0.0 gage)
14.5
Minimum, bar
psi
0.8 absolute (-0.2 gage)
11.6
Case Pressure – Peak, bar 4.0 absolute (3.0 gage)
and less than 0.5 bar above inlet pressure
Rated, bar 2.0 absolute (1.0 gage)
and less than 0.5 bar above inlet pressure
Fluid Temperature Range, °C
°F
-40 to +95
-40 to +203
Fluid Viscosity – Rated, cSt 6 to 160
Max. Intermittent, cSt 5000 (for cold starting)
Min. Intermittent, cSt 5
Fluid Contamination – Rated, ISO 20/18/14
Maximum, ISO 21/19/16
SAE Mounting – Flange, SAE 127-4 (C) 152-4 (D)
Spline Shaft, SAE 14T–12/24P 17T-12/24P 13T-8/16P
Weight – End Port, kg
lb
29
64
30
66
51
112
66
145
Side Port, kg
lb
30
67
31
68
53
117
67
147
Thru-Drive, kg
lb
34
75
35
77
55
121
82
180
*Intermittent pressure is defined as less than 10% of operation time, not exceeding 6 successive seconds
Technical Information
Technical Data
Typical Control Reponse Times*
Typical Control
Response Time (ms)
Control Description Pump Operating Condition 060 075 100 140
”C” Pressure Limiter Maximum Displacement to Zero 37 21 26 30
Zero Displacement to Maximum 119 89 108 125
”L” Load Sensing Maximum Displacement to Zero 54 40 43 45
Zero Displacement to Maximum 186 97 189 280
”R” Pilot Operated
Control
Maximum Displacement to Zero 43 37 39 40
Zero Displacement to Maximum 125 115 123 130
* Based on NFPA testing standards
For max volume stops:
Pump Size % Stroke reduction per turn
P*060 6.76
P*075 6.2
P*100 5.5
P*140 4.8
Control Adjustment Sensitivity:
• Load Sense 28 Bar/Turn
• Pressure Compensator 80 to 280 bar range
(C0) = 40 Bar/Turn
• Pressure Compensator 20 to 80 bar range
(C1) = 18.6 Bar/Turn

Pump Installation - P1100
Input Shafts
P1100 ISO SAE
BA 20.0 42.1
BB 45.0 54.0
BC 56.0/55.0 62.8/61.2
SPLINE: ISO 3019/2-2001-P40N SPLINE: SAE ASA-B 1960
(REF DIN 5480) SAE 38-4(C-C) INVOLUTE SPLINE DATA
INVOLUTE SPLINE DATA CLASS 2 FLAT ROOT SIDE FIT
FLAT ROOT SIDE FIT NUMBER OF TEETH - 17
BD NUMBER OF TEETH - 18 PITCH - 12/24
MODULE - M2 PRESSURE ANGLE - 30
PRESSURE ANGLE - 30 MAJOR DIAMETER - 1.4793/1.4763 IN
MAJOR DIAMETER - 39.60 PITCH DIAMETER - 1.4167
TOOTH THICKNESS - 9e
CA ISO 3019/2-2001 125B2SW SAE J744 JUN96 127-4 C
CB 13.77/13.50 14.4 DIA.
CC 56.6 57.2
CD 113.2 SQUARE 114.5 SQUARE
CE 125.00/124.94 ISO 3019/2 127.00/126.95 SAE J744
CF 9.5/9.0 12.7/12.2
